CT scanning allows for a detailed, three-dimensional view of a battery's interior, without the need to disassemble it. This is crucial for identifying critical issues that could lead to battery failure or safety concerns including:
- Electrode misalignment
- Anode overhang
- Separator integrity
- Tab weld quality
- Foreign material detection
- Electrolyte distribution
- Internal short circuits
- Cell and module assembly
- Density variations
- Porosity in electrodes
- Structural integrity of casing
- Thermal runaway precursors
Watch our free Webinar (left) to learn more about how industrial CT inspects batteries across their full lifecycle.
![](https://cdn.prod.website-files.com/63e15418201b6e2a5cabb911/6643dab4e10a40041924487a_battery%201.png)
![](https://cdn.prod.website-files.com/63e15418201b6e2a5cabb911/6643dab4e10a40041924487a_battery%201.png)
21700 lithium-ion battery

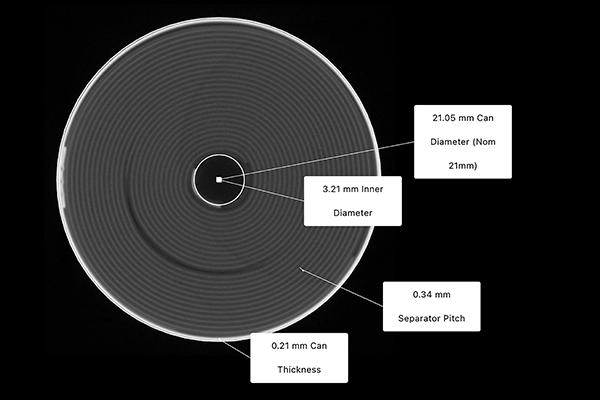

Voyager’s dimensioning features allow engineers to measure anode overhang in batteries, as seen here in the LG21700 lithium-ion battery used in the Tesla Model 3 and Model Y.
![](https://cdn.prod.website-files.com/63e15418201b6e2a5cabb911/6643dae466d545a260b5796b_battery%202.png)
![](https://cdn.prod.website-files.com/63e15418201b6e2a5cabb911/6643dae466d545a260b5796b_battery%202.png)
Lithium-polymer pouch cell
In this lithium-polymer battery, industrial CT reveals considerable layer separation as well as defects with both the tab weld and electrode layers, both of which could lead to thermal runaway.
![](https://cdn.prod.website-files.com/63e15418201b6e2a5cabb911/6643db0af0c5b1314d885e6c_battery%203.png)
![](https://cdn.prod.website-files.com/63e15418201b6e2a5cabb911/6643db0af0c5b1314d885e6c_battery%203.png)
18650 lithium-ion battery
These 2D views of a lithium-ion battery allow engineers to pinpoint the exact location of foreign material, which could decrease battery efficiency and increase the risk of short circuits.
