In everything from consumer packaging to medical devices, the integrity of seals is paramount to product performance. With industrial CT, you can pinpoint leaks in situ and quickly identify their source.

Catch design and manufacturing problems like poorly-sized gaskets without disassembly.

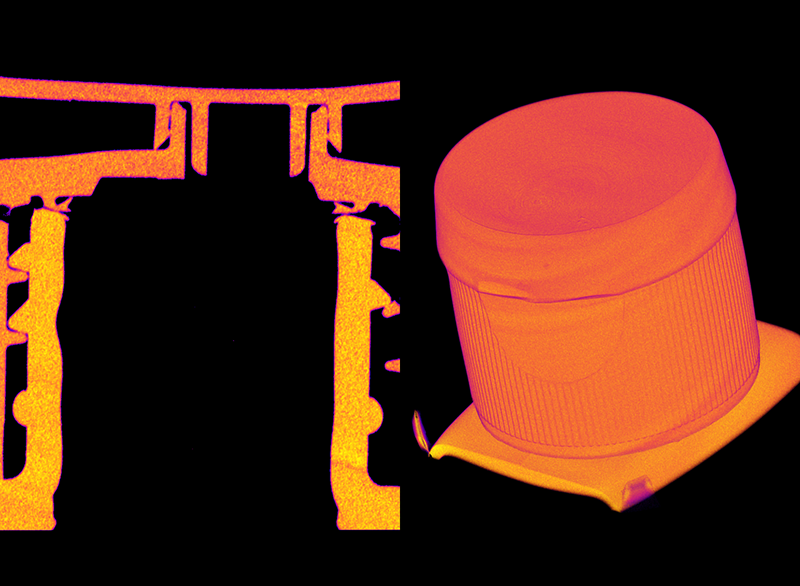

Analyze thread engagement to reduce spoilage and returns by identifying misaligned, poor fitting, and broken internal components.

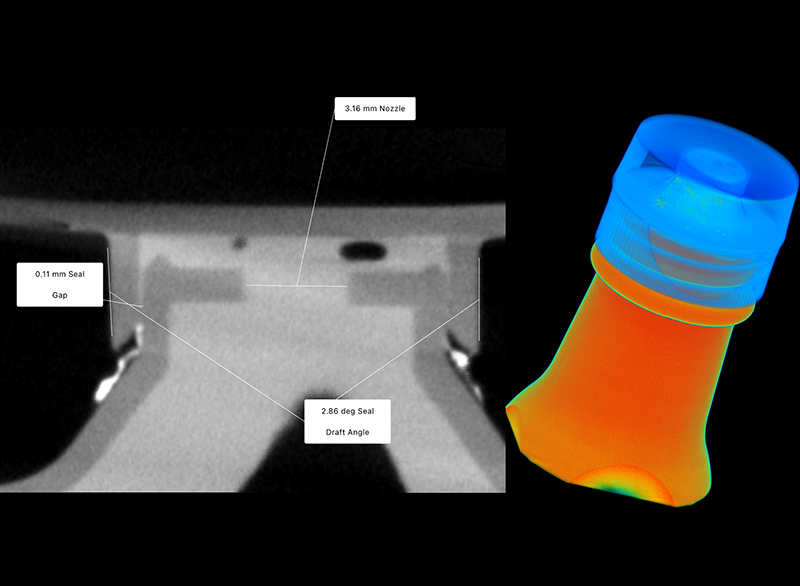

Determine leak sources and work backwards to iterate on your prototype.

Reach out to our team to learn how Lumafield’s accessible industrial CT technology can work for you.

Cosmetic packaging is carefully designed to transport and and dispense cosmetic products under exactly the right conditions, all while delivering a satisfying user experience. Intricate pumps, multifaceted assemblies, and chemical compounds of varying viscosities need to work together seamlessly to exceed customers’ high expectations.

Though this packaging is often elegant and simple in appearance, a lot can go wrong on the inside. We used our industrial CT scanner to study some of the astonishing mechanisms inside three beauty products. Along the way, we pinpoint flaws that could have been caught with the help of x-ray vision.

This hydrating serum from Drunk Elephant comes in a sleek angular bottle. Instead of a lid, you twist the top, and a pump pops up—ready to deliver the product. CT scans show an intricate snap-fit engagement between the pump casing and bottle, a higher-density metal spring, and threading where the pump screws into the serum reservoir. Unfortunately, this threading is misaligned, and there’s a gap that causes the pump to wobble and not dispense the serum properly. The sizing of the components may need to be adjusted, or the manufacturing process might require review to fix this problem.

We also scanned a mascara container to determine the source of a noticeable leak. Slicing on both the X and Z planes of our CT scans reveals a clear leak path. It seems the rubber wipers that prevent the brush from picking up too much mascara aren’t fully sealing around the wand, allowing mascara to escape the well and accumulate in the threads, causing further interference.

In our CT scans of this eyebrow pencil, the tight connections between all of the interlocking parts are visible. At one end, we see the metal coil of the spoolie brush. At the other end, we discover the root of this product’s failure. There’s nothing wrong with the assembly that extends and retracts the wax stick, but the stick itself has broken. Just like the graphite in a mechanical pencil, you’d be left hopelessly twisting until the mechanism tightens completely to either extreme.

These are just a few of the ways industrial CT can guide inspection during the quality control stage of product development. Incorporating the insights of CT earlier on in the process, however, can help engineers and designers avoid issues like these before they even arise.

Quickly compare your manufactured parts to their original design, inside and out.

Nearly every modern product begins its life as a computer-aided design (CAD) file. The difference between this digital design and the physical finished product is at the heart of the product development process. Innumerable manufacturing variables stand between an engineer’s idea and her factory’s output, and linking these variables to outcomes occupies entire engineering professions.

We’re excited to offer a tool that will give engineers deeper insight into the obstacles that stand between them and their vision: CAD Comparison, which we’re introducing this month, makes it easy to see how a physical object diverges from its original design. CT scans can capture both visible and invisible features in a 3D model; by overlaying a CAD file, we’re able to compute deviation from the design and visualize it using color maps.

CAD Comparison is an essential tool for delivering high-quality molded, cast, and 3D printed parts; it instantly reveals signs of warping and tool wear, making it easy to tune design and manufacturing parameters. It can quickly detect flawed manufacturing steps, highlighting machined and stamped features that are misplaced or missing. And it’s an invaluable tool for failure analysis, pinpointing broken parts and capturing deflection.

Running a CAD comparison takes just a few minutes on Lumafield’s accessible industrial CT platform. The process begins with our easy-to-use Neptune CT scanner—a machine designed to work in an ordinary office or workshop environment, equipped with automated scan configuration tools. Lumafield’s cloud-based Voyager analysis software accepts mesh files exported from any CAD software, guides the user through an alignment process, and visualizes the divergence between the CAD file and the scanned part.

The entire process runs in a web browser, taking just minutes to handle analysis that would otherwise require days of imprecise and expensive article inspection. Our CAD Comparison tools accelerate design iterations, reduce scrap, and cut costs; helping designers and engineers make data-driven decisions that go beyond calipers and 2D drawings.

Contact us for a live demo of Lumafield’s CAD Comparison tools.
