Most of us carry batteries around every day without thinking about what’s inside them. Phones, laptops, and cars all rely on their power. From the outside they seem simple; inside they’re made of carefully chosen materials that have to work together to provide the right amount of power.
Battery basics

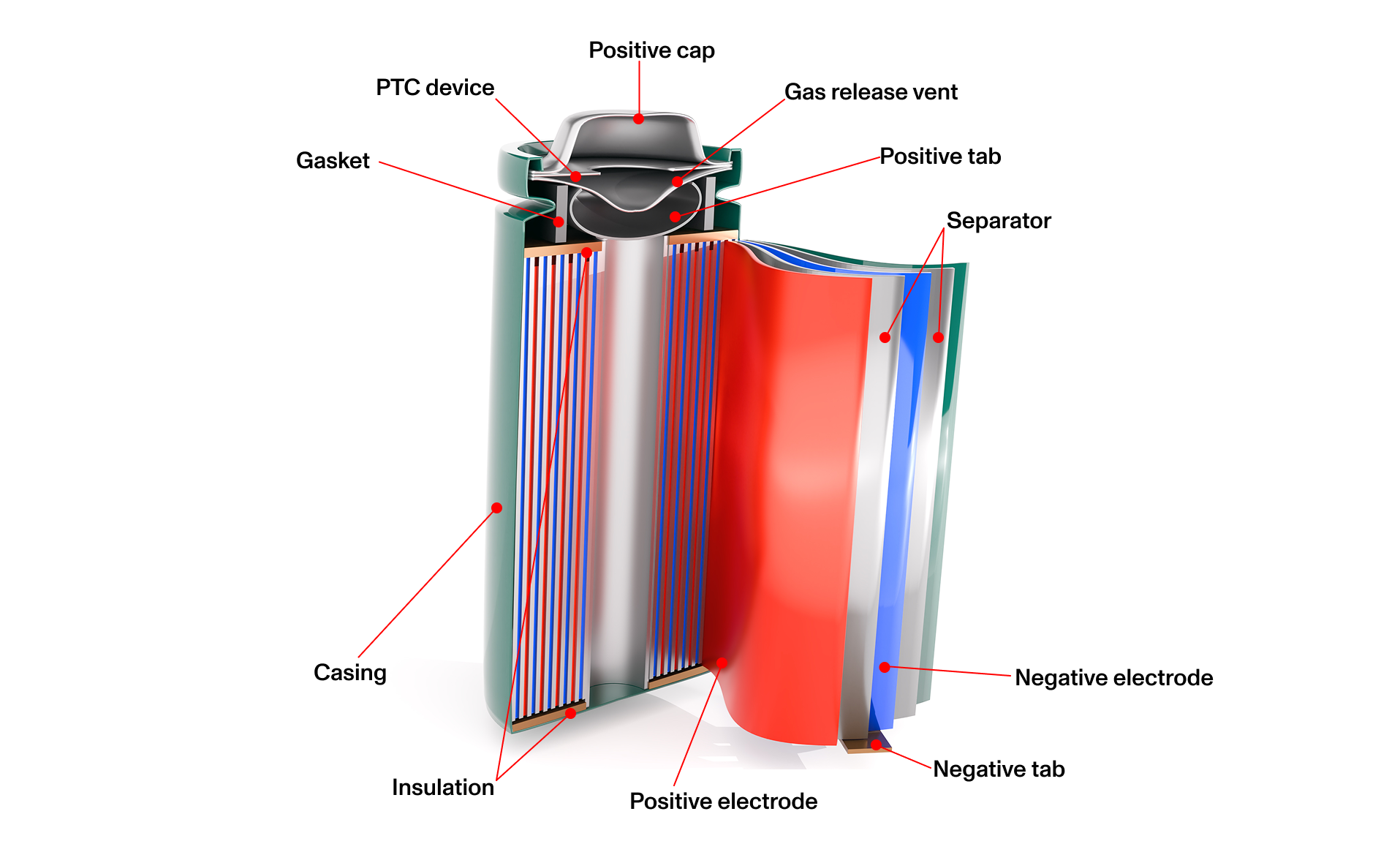

The main pieces of a battery are the anode, the cathode, a separator, and an electrolyte.
Cathode materials have shifted over the years. They used to be lithium cobalt oxide or lithium manganese oxide, though those are mostly phased out. Today you’ll see acronyms like LFP (lithium iron phosphate) and NMC (nickel, manganese, cobalt). Each mix has different strengths: some give higher energy density, others last longer, or are a bit more stable and safer.
Anodes are usually graphite spread onto copper foil. The electrolyte is what lets lithium ions move between the anode and cathode. It is often a liquid solvent, which can be flammable; there are also versions that use a polymer instead. Those can improve safety and sometimes performance. Separators are thin polymers that keep the anode and cathode from touching. Solid-state batteries go further by using solid electrolytes, though they are still in development.
Making a battery is not just stacking parts together. Powders like graphite or lithium compounds are mixed into a binder and coated onto thin foils. How evenly that coating spreads affects how it dries and how it compresses later. The tricky part is that every material behaves differently. You cannot simply swap one formulation for another and expect the process to work; each one needs its own set of parameters, which means testing, adjusting, and running trials until it works consistently.
Competing priorities
Every choice in battery design comes with trade-offs. Cost is always a factor; if a battery is too expensive, it will not make it to market. Safety is another non-negotiable. Failures can lead to recalls or worse.
Beyond those, it depends on the application. Some batteries need the highest possible energy density, like those in electric cars. Others need long cycle life, like batteries for grid storage. Engineers weigh performance factors such as energy, lifespan, safety, and affordability against what the end product requires.
Supply chain and recycling

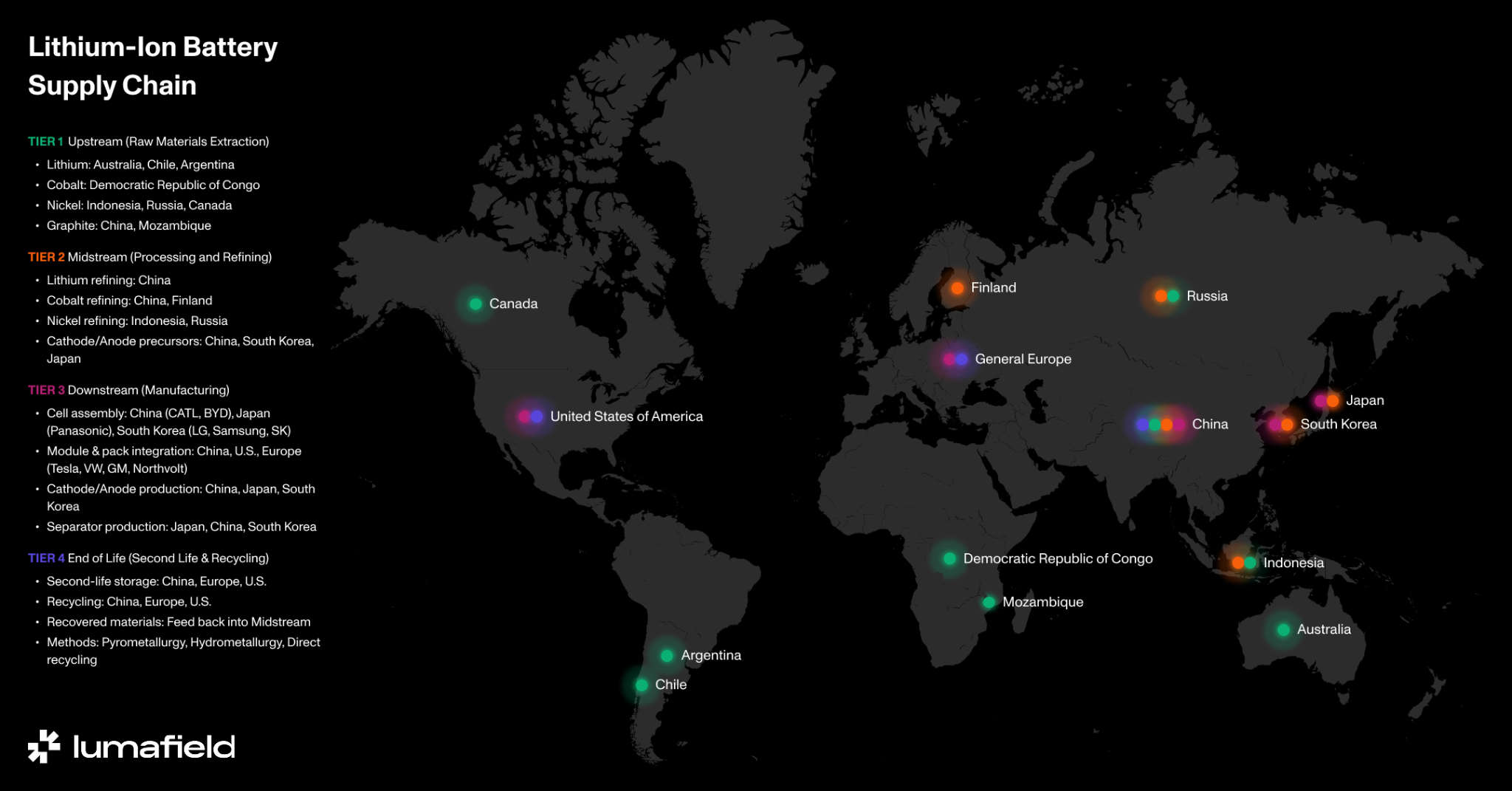

Batteries rely on critical minerals such as lithium, cobalt, nickel, and graphite; each is sourced from different parts of the world. That makes supply chains important. Tariffs, import sources, and political shifts all play a role in availability and cost. Recycling can help, and new processes are being developed, but it remains complicated.
Each battery chemistry uses a different mix of metals, which makes separating them difficult. Recycling techniques depend on the physical and chemical properties of the powders and foils, so a process that works for one chemistry will not necessarily work for another.
There is also the economic side. Recycling only makes sense if the materials are valuable enough to recover. Using less expensive materials can reduce dependence on scarce resources; it can also make recycling less worthwhile.
Finding defects
It only takes a small flaw inside a battery to cause an issue. Historically, anode overhang, where the anode extends too far past the cathode, has been a primary concern. Other defects include poor tab welds, wrinkles, or tears in electrodes. One of the main issues today is foreign particles. Tiny bits of metal can break off during welding or cutting, or fall in during assembly; those particles can trigger failures.
To catch these problems, you need ways to look inside the sealed battery. CT scanning is one option, and it can detect very small particles, even down to a few microns. Ultrasound can also work, though with lower resolution. Destructive testing is another method, but it is slow and not practical for every battery that comes off the line.
Balance
From the outside, a battery looks simple. Inside, it is a complex mix of materials, processes, and trade-offs. Every decision, whether it is choosing LFP over NMC or tweaking how powders are coated, has ripple effects on performance, cost, safety, and recyclability. There is no perfect recipe; it is always about finding the right balance for the job at hand.
